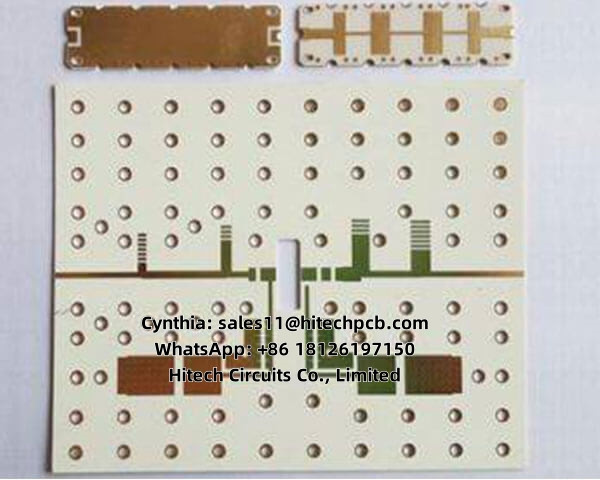

Product type: 1 Layer Metal Base LED PCB

Material Copper: base

Layers/thickness: 1L/2.0mm

Line Space/width: 20/16mil

Surface treatment: Immersion gold

Minimum hole dia.: 1.5mm

Outer Layer Copper Thickness: 1/1 OZ

Email us Cynthia<sales11@hitechpcb.com> if you are interested in PCB and PCBA service.

HDI board (High Density Interconnector), that is, high-density interconnect board, is a circuit board with a relatively high line distribution density using micro-blind buried hole technology. HDI board has inner and outer layers, and then uses drilling, in-hole metallization and other processes to connect the internal layers of each layer.
HDI board is generally manufactured by lamination. The more times of lamination, the higher the technical level of the board. Ordinary HDI board is basically 1-time lamination, and high-end HDI uses 2 or more times of lamination technology, and also uses advanced PCB technologies such as stacking holes, electroplating filling holes, and laser direct drilling.
When the density of PCB increases to more than eight layers, the cost of manufacturing with HDI will be lower than the traditional complex pressing process. HDI board is conducive to the use of advanced assembly technology, and its electrical performance and signal accuracy are higher than traditional PCB. In addition, HDI boards have better improvements in radio frequency interference, electromagnetic wave interference, electrostatic discharge, heat conduction, etc.
Electronic products are constantly developing towards high density and high precision. The so-called "high" not only improves the performance of the machine, but also reduces the size of the machine. High-density integration (HDI) technology can make the terminal product design more miniaturized while meeting higher standards of electronic performance and efficiency. Currently, many popular electronic products, such as mobile phones, digital (cameras), laptops, automotive electronics, etc., use HDI boards. With the upgrading of electronic products and market demand, the development of HDI boards will be very rapid.

Introduction to ordinary PCB
PCB (Printed Circuit Board), the Chinese name is printed circuit board, also known as printed circuit board, is an important electronic component, a support for electronic components, and a carrier for electrical connections of electronic components. Because it is made using electronic printing technology, it is called a "printed" circuit board.
Its main function is to avoid manual wiring errors due to the consistency of similar printed boards after electronic equipment adopts printed boards, and can realize automatic insertion or mounting, automatic soldering, and automatic detection of electronic components, ensuring the quality of electronic equipment, improving labor productivity, reducing costs, and facilitating maintenance.

HDI board is a high-density interconnection circuit board. The boards that are electroplated with blind holes and then pressed again are all HDI boards, which are divided into first-order, second-order, third-order, fourth-order, and fifth-order HDI. For example, the motherboard of iPhone 6 is a fifth-order HDI.
Simple buried holes are not necessarily HDI.

How to distinguish between first-order, second-order, and third-order HDI PCBs
The first-order is relatively simple, and the process and technology are easy to control.
The second-order is troublesome. One is the alignment problem, and the other is the problem of punching and copper plating. There are many designs for the second order. One is that the positions of each order are staggered. When the adjacent layer needs to be connected, it is connected through wires in the middle layer. The method is equivalent to two first-order HDIs.
The second is that two first-order holes overlap and achieve the second order by superposition. The processing is similar to two first-order holes, but there are many process points that need to be specially controlled, which is what is mentioned above.
The third is to drill directly from the outer layer to the third layer (or N-2 layer). The process is very different from the previous one, and the difficulty of drilling is also greater.
For the third order, the second order is analogous.
Ordinary PCB boards are mainly FR-4, which is made of epoxy resin and electronic grade glass cloth. Generally, traditional HDI uses adhesive copper foil on the outermost surface. Because laser drilling cannot penetrate glass cloth, adhesive copper foil without glass fiber is generally used, but the current high-energy laser drilling machine can already penetrate 1180 glass cloth. In this way, there is no difference from ordinary materials.
Email us Cynthia<sales11@hitechpcb.com> if you are interested in PCB and PCBA service.

Why is the application range of LED aluminum substrate so wide?

LED aluminum substrate is a special metal-based copper-clad plate, which is widely used because of its good thermal conductivity, heat dissipation, electrical insulation and mechanical processing performance. In the production process of circuit board manufacturers, it can be clearly known that the aluminum substrate can be divided into three layers, namely the circuit layer (copper foil), the insulation layer and the metal base layer. LED aluminum substrates are widely used in LEDs, flashlights, street lights, mining lamps, high power, etc. Why can aluminum substrates be so widely used and used in high-tech products? The thermal expansion, dimensional stability, heat dissipation and other properties of aluminum substrates enable them to meet more high-demand products.

Let's introduce the relevant properties of led aluminum substrates.

1. Dimensional stability: Aluminum substrates are obviously much more stable in size than printed boards made of insulating materials. Aluminum-based printed circuit boards and aluminum sandwich panels, heated from 30℃ to 140~150℃, have a dimensional change of 2.5~3.0%.

2. Thermal expansion: Thermal expansion and contraction are the common nature of materials, and the thermal expansion coefficients of different materials are different. For example: LED aluminum substrates can effectively solve the heat dissipation problem, thereby alleviating the thermal expansion and contraction problems of different materials of components on printed circuit boards, and improving the durability and reliability of the entire machine and electronic equipment. In particular, it solves the thermal expansion and contraction problems of SMT (surface mount technology).

3. Heat dissipation: At present, many double-sided boards and PCB multi-layer boards have high density and high power, and it is difficult to dissipate heat. Conventional printed circuit board substrates such as FR4 fiberglass boards and CEM-3 are poor conductors of heat, with interlayer insulation, and heat cannot be dissipated. Local heating of electronic equipment is not eliminated, resulting in high-temperature failure of electronic components, and aluminum substrates can solve this heat dissipation problem. In addition to aluminum substrates, copper substrates also have particularly good heat dissipation, but the price is very expensive.

4. Other reasons: LED aluminum substrate has a shielding effect; it replaces brittle ceramic substrates; it can safely use surface mounting technology; it reduces the truly effective area of printed PCB circuit boards; it replaces components such as radiators, improves product heat resistance and physical properties; and reduces production costs and labor.
